1.Elasticsearch 的全面概述
Elasticsearch
是一个分布式、开源的搜索引擎,专门用于处理大规模的数据搜索和分析。它基于 Apache Lucene
构建,具有实时搜索、分布式计算和高可扩展性,广泛用于全文检索、日志分析、监控数据分析等场景,可以阅读一下官方文档。
2.Elasticsearch 的基本功能
基本上我们使用一种叫作分词器的东西在控制面板上对 Elasticsearch
进行操作。
3.Elasticsearch 的使用教程
3.1.核心组件
3.1.1.Elasticsearch
Elasticsearch
生态系统非常丰富,包含了一系列工具和功能,帮助用户处理、分析和可视化数据,Elastic Stack(也称为 ELK Stack)
是其核心组成部分,由几个部分组成。最核心的部分就是 Elasticsearch
,是核心的搜索引擎,负责存储数据、索引数据、搜索数据。
3.1.2.Kibana
可视化平台,用于查询、分析、展示 Elasticsearch
中的数据,是 Elastic Stack
的可视化组件,允许用户通过图表、地图和仪表盘来展示存储在 Elasticsearch
中的数据。它提供了简单的查询接口、数据分析和实时监控功能。

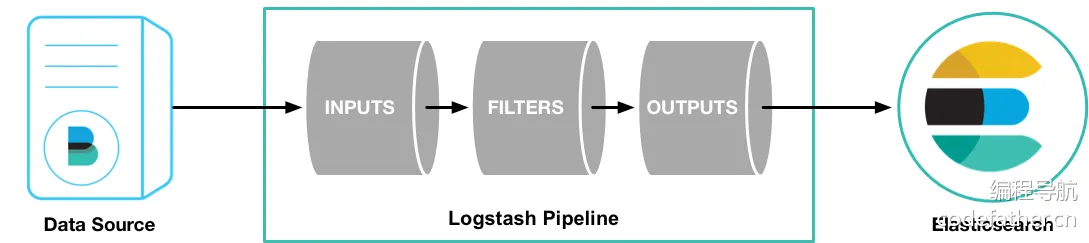

3.1.3.Logstash
负责数据处理管道,负责数据收集、数据过滤、数据增强、数据传输到 Elasticsearch
。是一个强大的数据收集管道工具,能够从多个来源收集、过滤、转换数据,然后将数据发送到 Elasticsearch
,Logstash
支持丰富的输入插件、过滤插件、输出插件。

3.1.4.Beats
轻量级的数据传输工具,收集和发送数据到 Logstash
或 Elasticsearch
。作为轻量级的数据采集代理,负责从不同来源收集数据并发送到 Elasticsearch
或 Logstash
。常见的 Beats
包括:
Filebeat
:收集日志文件Metricbeat
:收集系统和服务的指标Packetbeat
:监控网络流量

3.2.组件部署
我们采用 Docker
进行部署,由于我自己的项目用的 Spring Boot 2.x
版本,对应的 Spring Data Elasticsearch
客户端版本是 4.x
,支持的 Elasticsearch
是 7.x
,所以建议 Elasticsearch
使用 7.x
的版本。由于我这里使用的是 Sping Boot 2.7.2.
,推荐 部署 Elasticsearch 7.17。我个人偏爱 Docker
,基本上能使用 Docker
解决的部署问题我都会使用 Docker
,因此我们需要先 sudo docker pull docker.elastic.co/elasticsearch/elasticsearch:7.17.28
,然后编写配置文件 docker-compose.yaml
,然后参考 这个文档 进行部署,我们部署个单机就足够了。
# 服务
services:
## Elasticsearch
work-elasticsearch:
image: docker.elastic.co/elasticsearch/elasticsearch:7.17.28
container_name: work-elasticsearch
restart: always
ports:
- "9200:9200"
environment:
- discovery.type=single-node # 表示单机部署
- xpack.security.enabled=true # 开启认证
- ELASTIC_PASSWORD=Qwe54188_ # 提供密码进行认证
- ES_JAVA_OPTS=-Xms4g -Xmx4g # 设置内存限制, 否则您的主机可能顶不住
networks:
- work-network
mem_limit: 5g # entrypoint 执行的是容器启动时始终执行的主程序, 下面安装了一个插件
entrypoint: >
sh -c "
if [ ! -d /usr/share/elasticsearch/plugins/analysis-ik ]; then
echo 'Installing IK plugin...';
elasticsearch-plugin install --batch https://release.infinilabs.com/analysis-ik/stable/elasticsearch-analysis-ik-7.17.28.zip;
fi;
exec docker-entrypoint.sh
"
# 网络
networks:
work-network:
name: work-network
然后使用 sudo docker-compose up -d work-elasticsearch
即可快速启动,可使用 curl -X GET "localhost:9200/?pretty"
来进行测试。
$ curl -X GET "localhost:9200/?pretty"
{
"name" : "9ffcfd197f5f",
"cluster_name" : "docker-cluster",
"cluster_uuid" : "4jdj3x2eRvqhZ0L3Eh-TBw",
"version" : {
"number" : "7.17.28",
"build_flavor" : "default",
"build_type" : "docker",
"build_hash" : "139cb5a961d8de68b8e02c45cc47f5289a3623af",
"build_date" : "2025-02-20T09:05:31.349013687Z",
"build_snapshot" : false,
"lucene_version" : "8.11.3",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
不过我们还需要另外一个重要的组件,就是 Kibana
可视化平台,可以 根据部署文档进行部署,我依旧是 采用 Docker 的部署方式,首先需要拉取 sudo docker pull docker.elastic.co/kibana/kibana:7.17.28
,然后还是给出 docker-compose.yaml
文件。
# 服务
services:
## Elasticsearch
work-elasticsearch:
image: docker.elastic.co/elasticsearch/elasticsearch:7.17.28
container_name: work-elasticsearch
restart: always
ports:
- "9200:9200"
environment:
- discovery.type=single-node # 表示单机部署
- xpack.security.enabled=true # 开启认证
- ELASTIC_PASSWORD=Qwe54188_ # 提供密码进行认证
- ES_JAVA_OPTS=-Xms4g -Xmx4g # 设置内存限制, 否则您的主机可能顶不住
networks:
- work-network
mem_limit: 5g # entrypoint 执行的是容器启动时始终执行的主程序, 下面安装了一个插件
entrypoint: >
sh -c "
if [ ! -d /usr/share/elasticsearch/plugins/analysis-ik ]; then
echo 'Installing IK plugin...';
elasticsearch-plugin install --batch https://release.infinilabs.com/analysis-ik/stable/elasticsearch-analysis-ik-7.17.28.zip;
fi;
exec docker-entrypoint.sh
"
## Kibana
work-kibana:
image: docker.elastic.co/kibana/kibana:7.17.28
container_name: work-kibana
restart: always
ports:
- "5601:5601"
environment:
- ELASTICSEARCH_HOSTS=http://work-elasticsearch:9200 # 对接搜索引擎
- ELASTICSEARCH_USERNAME=elastic # 提供用户进行认证
- ELASTICSEARCH_PASSWORD=Qwe54188_ # 提供密码进行认证
networks:
- work-network
# 网络
networks:
work-network:
name: work-network

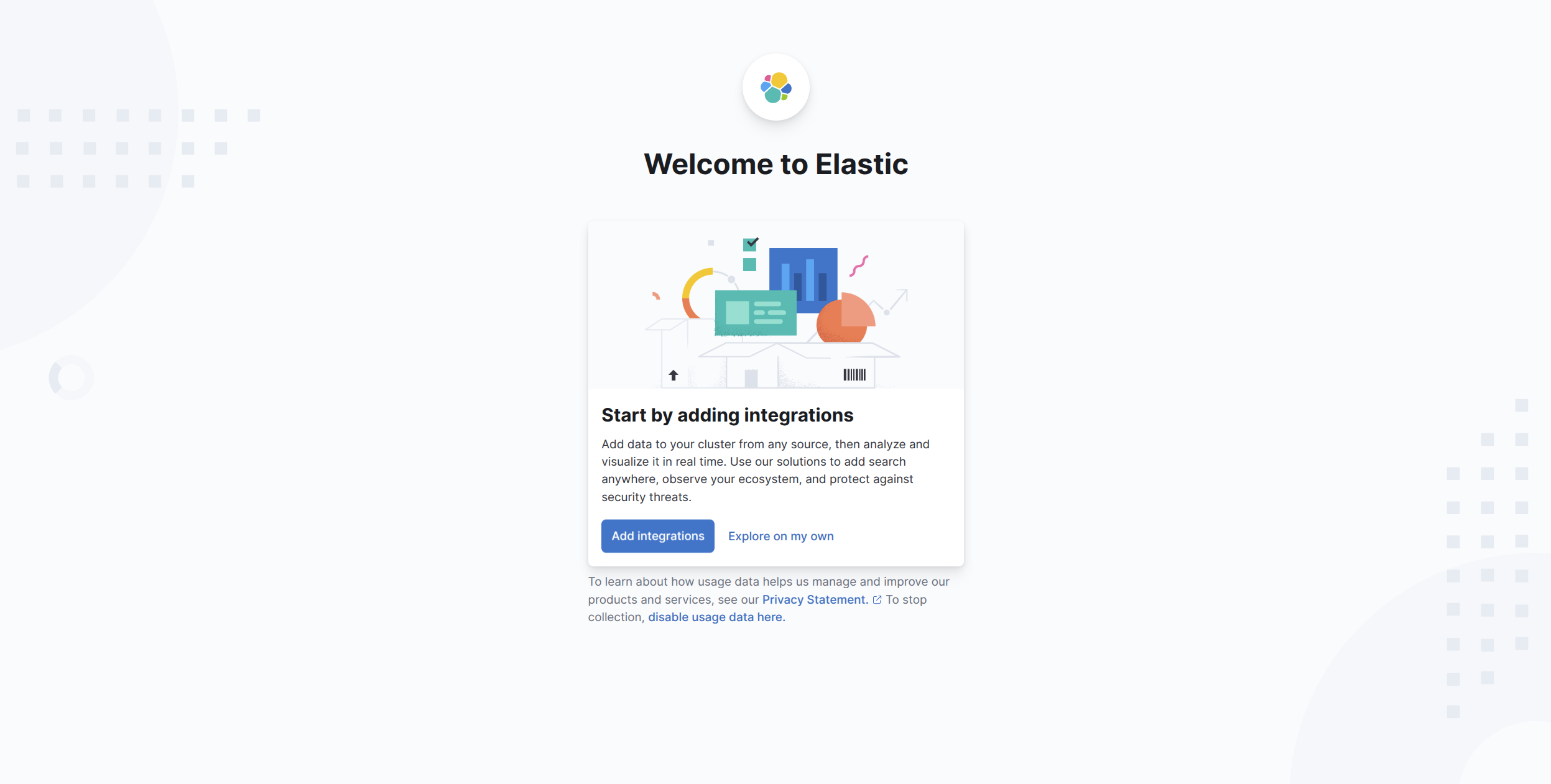

然后使用 sudo docker-compose up -d work-kibana
快速部署,最后访问 http://127.0.0.1:5601
即可得到控制台。

重要

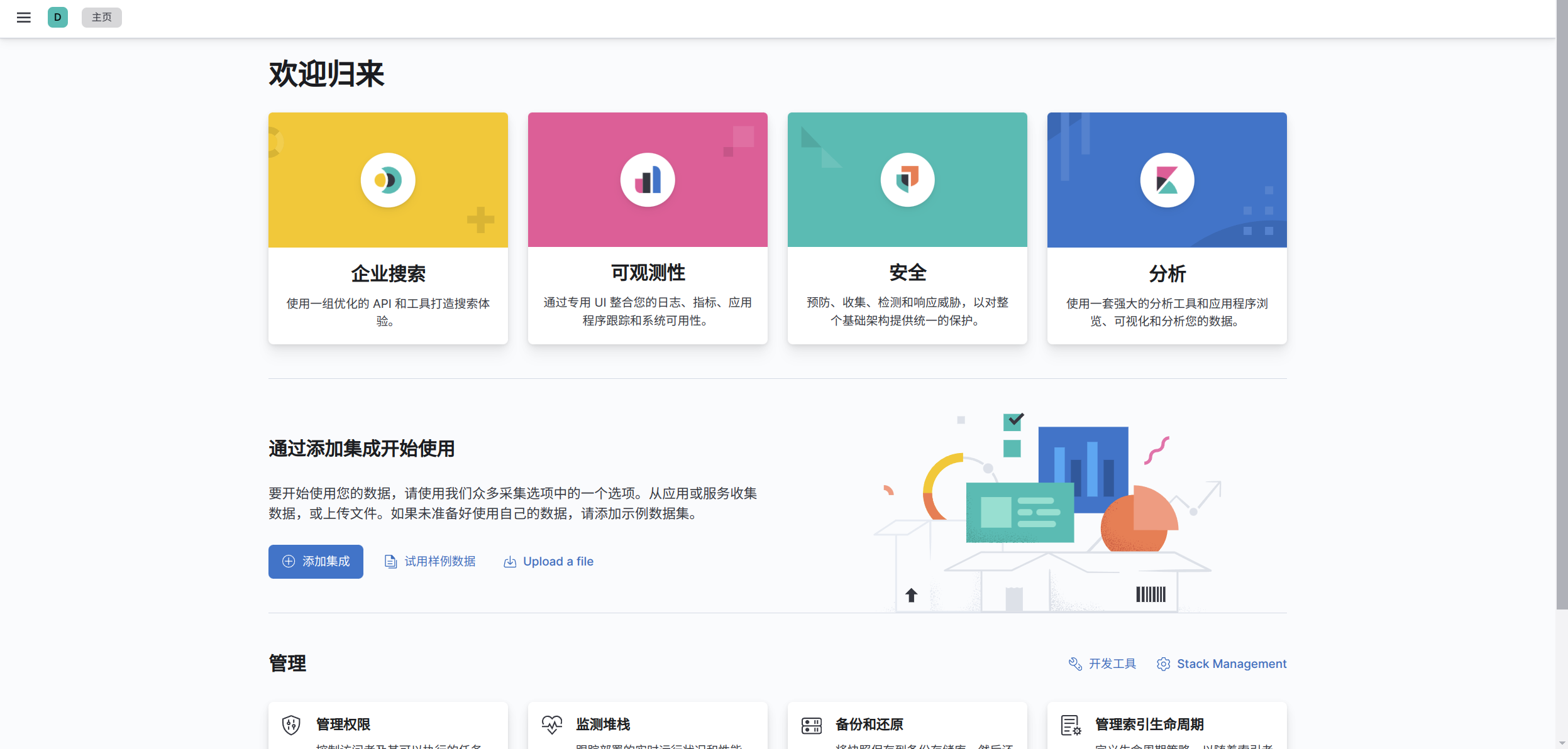

补充:您可以在容器内部的 /usr/share/kibana/config/kibana.yml
末尾添加 i18n.locale: "zh-CN"
即可实现汉化控制台。

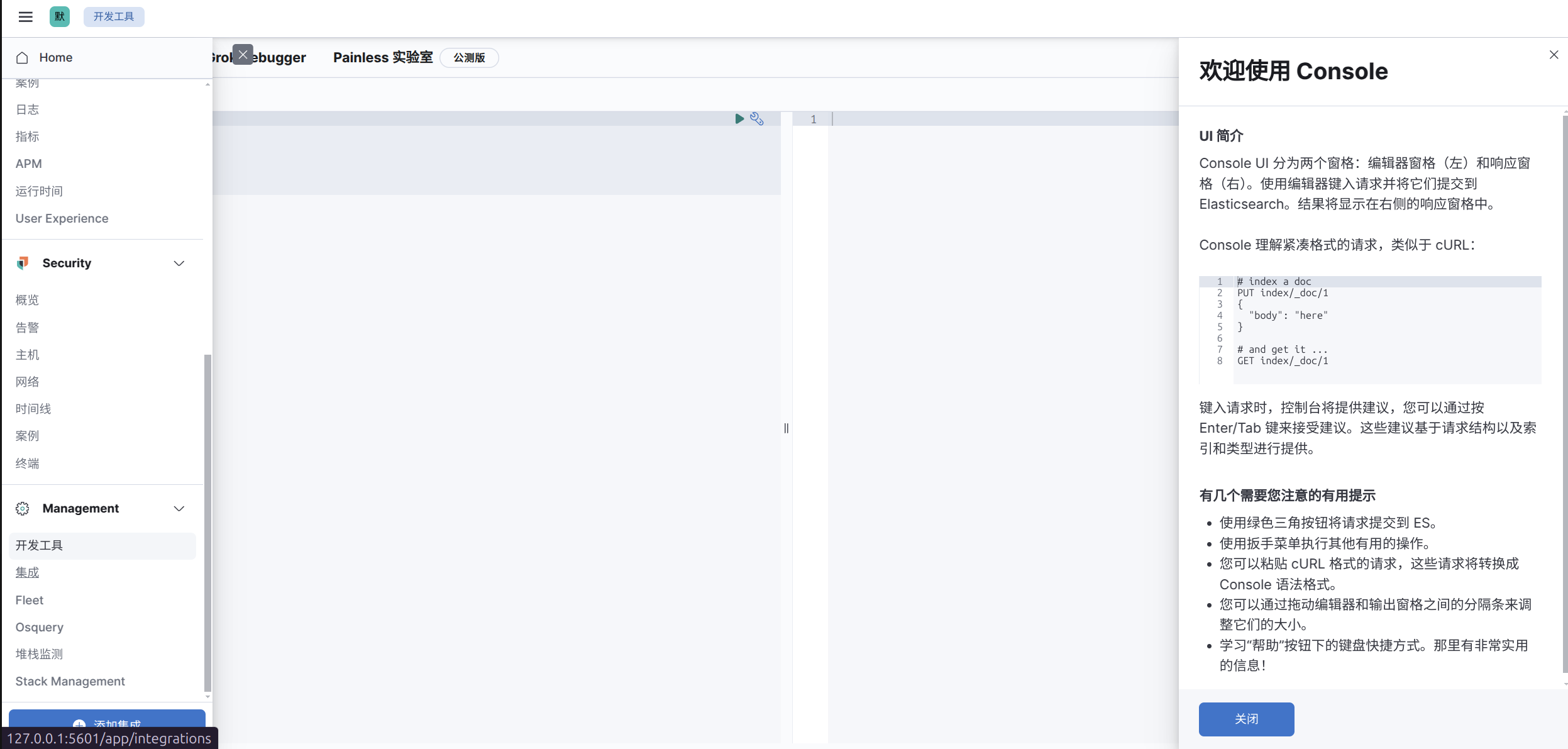

尝试利用 Kibana
的开发工具来操作 Elasticsearch
的数据,比如查询操作。

然后输入分词器配置。

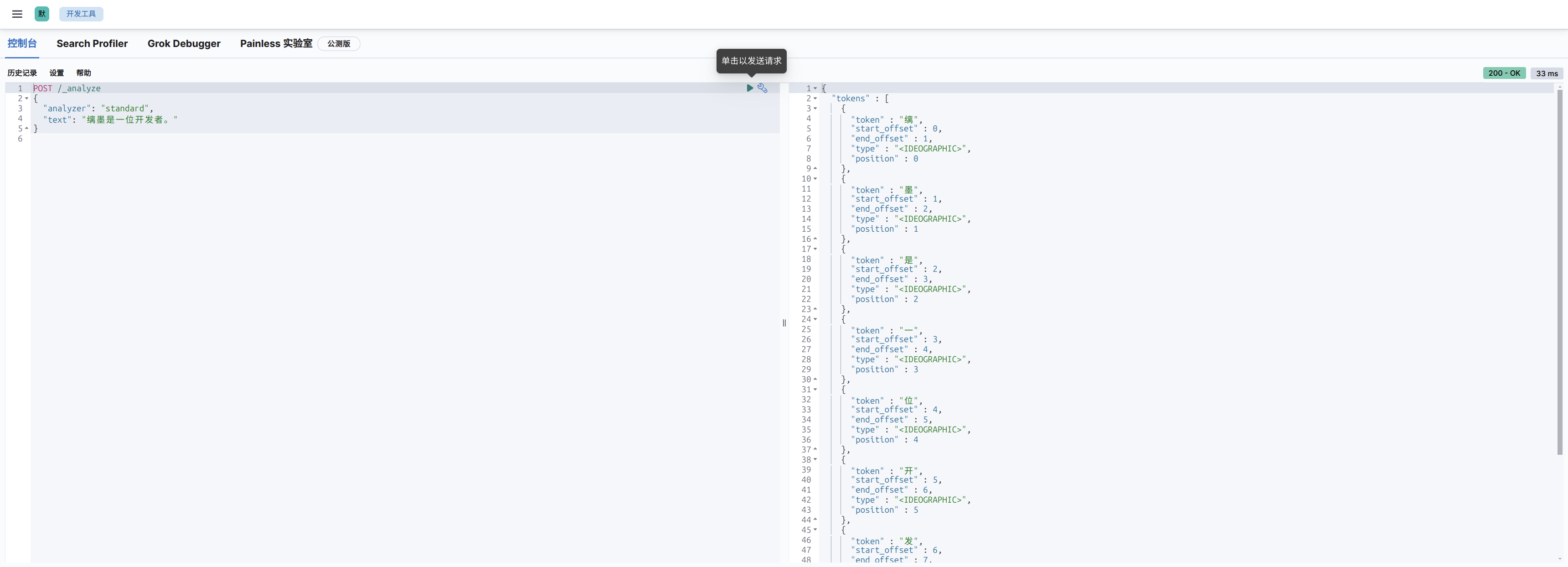

POST /_analyze
{
"analyzer": "standard",
"text": "缡墨是一位开发者。"
}

可以看到对中文的分词是比较糟糕的,因为标准的分词器 standard
只支持英文,我们需要使用对中文进行优化的分词器,不过可惜的是以下默认安装的分词器都不支持中文:
standard
:标准分词器simple
:简单分词器whitespace
:按空格分词stop
:带停用词的分词器keyword
:不分词,将整个字段作为一个词条pattern
:基于正则表达式的分词器ngram
和edge_ngram
:n-gram
分词器
我们需要安装 IK
中文分词器(ES
插件),其实只需要执行 .\bin\elasticsearch-plugin.bat install https://release.infinilabs.com/analysis-ik/stable/elasticsearch-analysis-ik-7.17.23.zip
就可以了,不过在 Docker
环境中该怎么做呢?很简单,在 ES
启动的时候运行这个指令即可,我们前面的配置文件已经做了这个事情,因此下面就可以直接使用了。IK
分词器插件为我们提供了两个分词器,ik_smart
和 ik_max_word
:

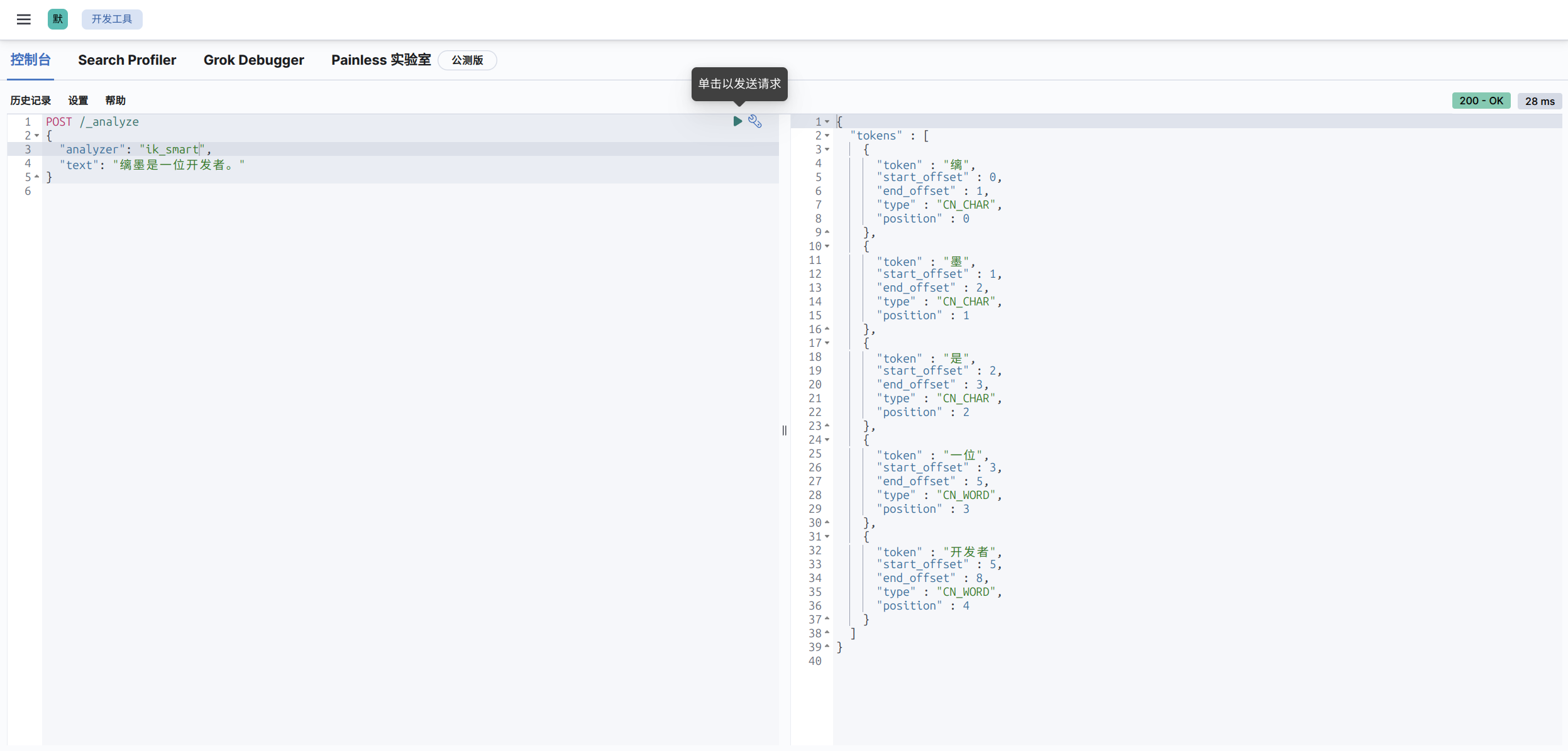

ik_smart
是智能分词,尽量选择最像一个词的拆分方式,比如“好学生”会被识别为一个词,适用于 搜索分词,即在查询时使用,保证性能的同时提供合理的分词精度。ik_max_word
尽可能地分词,可以包括组合词,比如“好学生”会被识别为3
个词:好学生、好学、学生,适用于 底层索引分词,确保在建立索引时尽可能多地分词,提高查询时的匹配度和覆盖面。

效果还不错。
3.3.快速使用
3.3.1.索引操作
分词器的语法我们可以慢慢来研究,不过有一个重要的问题,ES
需要读取 MySQL
中的数据才能进开始进行分词,而不是我们在控制台中执行。而 MySQL
中的数据是有可能变动的,因此我们就需要全量更新和增量更新。为了将 MySQL
题目表数据导入到 ES
中并实现分词搜索,需要为 ES
索引定义 mapping
。ES
的 mapping
用于定义字段的类型、分词器及其索引方式,含义类似 MySQL
的数据表。
既然是类似数据库概念,那么就需要学习字段的类型,我们对项目中的用户数据进行一个索引 mapping
的制作,我们的主要目标是分词搜索用户的标识、帐号、简介、名字、昵称、地址。
字段类型 | 描述 | 示例用途 |
---|---|---|
text | 用于存储需要分词的字符串,适合全文搜索 | 文章内容、评论 |
keyword | 用于存储不分词的字符串,适合精确匹配 | ID、标签、电子邮件 |
long | 用于存储 64 位整数 | 年份、ID、计数器 |
integer | 用于存储 32 位整数 | 小范围整数 |
short | 用于存储 16 位整数 | 较小的整数 |
byte | 用于存储 8 位整数 | 非常小的整数 |
double | 用于存储双精度浮动数值 | 浮动小数点数 |
float | 用于存储单精度浮动数值 | 较小精度的浮动数值 |
boolean | 用于存储布尔值(true 或 false ) | 状态开关、是否启用 |
date | 用于存储日期和时间,支持多种日期格式 | 时间戳、日期字段 |
object | 用于存储嵌套的 JSON 对象,可以存储多个字段 | 地址、用户资料 |
nested | 用于存储数组中嵌套的对象,支持多级嵌套和嵌套查询 | 订单项、嵌套数据结构 |
range | 用于存储数值范围(如日期范围、数值范围等) | 日期范围、数值范围 |
geo_point | 用于存储地理坐标(经度、纬度),支持空间查询 | 地理位置、距离查询 |
geo_shape | 用于存储更复杂的地理形状(如多边形、线条等) | 多边形区域、复杂形状查询 |
ip | 用于存储 IP 地址,支持 IP 匹配查询 | IP 地址、CIDR 匹配 |
binary | 用于存储二进制数据,适用于图像、音频等文件 | 图像文件、音频文件 |
token_count | 用于存储文本字段中的词项数量 | 文本字段长度统计 |
version | 用于存储版本信息,常用于版本控制 | 软件版本 |
flattened | 用于存储多键值对,适合存储动态字段 | 动态数据、变化的字段结构 |
wildcard | 用于支持模糊匹配(* 或 ? )的字符串字段 | 模糊匹配查询 |
scaled_float | 用于存储以某个比例缩放的浮动数值,通常用于财务或计数数据 | 财务数据、精度缩放的计数数据 |
PUT /work_user_centre
{
"mappings": {
"properties": {
"account": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"wx_union": {
"type": "keyword",
"index": true
},
"mp_open": {
"type": "keyword",
"index": true
},
"email": {
"type": "keyword",
"index": true
},
"phone": {
"type": "keyword",
"index": true
},
"ident": {
"type": "keyword",
"index": true
},
"passwd": {
"type": "keyword",
"index": false
},
"avatar": {
"type": "keyword",
"index": false
},
"tags": {
"type": "keyword",
"index": true
},
"nick": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"name": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"profile": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"birthday": {
"type": "date",
"format": "yyyy-MM-dd",
"index": true
},
"country": {
"type": "keyword",
"index": true
},
"address": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"role": {
"type": "integer",
"index": true
},
"level": {
"type": "integer",
"index": true
},
"gender": {
"type": "integer",
"index": true
},
"deleted": {
"type": "keyword",
"index": true
},
"create_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
},
"update_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
}
}
}
}
有几个事情需要说明一下:
- 在
ES
中,每个文档都有一个唯一的_id
字段来标识文档,该字段用于文档的主键索引和唯一标识。通常,开发者并不需要显式定义id
字段,因为ES
会自动生成_id
,或者在插入数据时,您可以手动指定_id
。 "analyzer": "ik_max_word"
指定了这个字段使用的分词器(analyzer
)是ik_max_word
,ik_max_word
是IK
分词器的一种配置,适用于最大化分词的精度,将文本拆分为更多的词项。用于细粒度的分词,能够将句子拆分成更多的词汇,这对于搜索时的精确匹配有帮助。"search_analyzer": "ik_smart"
:指定了一个不同的分词器ik_smart
用于搜索时的分析。ik_smart
是另一种分词模式,它会使用较少的词汇进行分词,通常适用于短文本或者对搜索精度要求不那么高的场景。这个设置的目的是在搜索过程中使用ik_smart
来减少分词数量,从而提高查询效率,同时避免不必要的复杂性。"index": true
是ES
中的一个字段设置,它的作用是决定该字段是否需要被索引。默认情况下,字段是会被索引的,但在某些情况下,您可以显式地设置它为false
,来禁用该字段的索引功能。deleted
使用keyword
类型,表示是否被删除。 因为keyword
是为精确匹配设计的,适用于枚举值精确查询的场景,性能好且清晰。为什么不用boolean
类型呢?因为MySQL
数据库存储的是0
和1
,写入ES
时需要转换类型。createTime、updateTime
时间字段被定义为date
类型,并指定了格式"yyyy-MM-dd HH:mm:ss"
。这样做的好处是ES
可以基于这些字段进行时间范围查询、排序和聚合操作,如按时间过滤或统计某时间段的数据。- 在
ES
中,所有的字段类型(包括keyword
和text
)默认都支持数组。你可以直接插入一个包含多个值的数组,ES
会自动将其视为多个值的集合。在查询时,ES
会将数组中的每个值视为独立的keyword
,可以进行精确匹配,例如上面的tags
字段。
重要
补充:但是有一点要注意,推荐在创建索引时添加 alias
(别名) ,因为它提供了灵活性和简化索引管理的能力。具体原因如下:
- 零停机切换索引:在更新索引或重新索引数据时,你可以创建一个新索引并使用
alias
切换到新索引,而不需要修改客户端查询代码,避免停机或中断服务。 - 简化查询:通过
alias
,可以使用一个统一的名称进行查询,而不需要记住具体的索引名称(尤其当索引有版本号或时间戳时)。 - 索引分组:
alias
可以指向多个索引,方便对多个索引进行联合查询,例如用于跨时间段的日志查询或数据归档。
因此完整的创建映射的 json
结构如下,需要在刚刚的控制台中执行:
PUT /user_v1
{
"aliases": {
"user": {}
},
"mappings": {
"properties": {
"account": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"wx_union": {
"type": "keyword",
"index": true
},
"mp_open": {
"type": "keyword",
"index": true
},
"email": {
"type": "keyword",
"index": true
},
"phone": {
"type": "keyword",
"index": true
},
"ident": {
"type": "keyword",
"index": true
},
"passwd": {
"type": "keyword",
"index": false
},
"avatar": {
"type": "keyword",
"index": false
},
"tags": {
"type": "keyword",
"index": true
},
"nick": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"name": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"profile": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"birthday": {
"type": "date",
"format": "yyyy-MM-dd",
"index": true
},
"country": {
"type": "keyword",
"index": true
},
"address": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"role": {
"type": "integer",
"index": true
},
"level": {
"type": "integer",
"index": true
},
"gender": {
"type": "integer",
"index": true
},
"deleted": {
"type": "keyword",
"index": true
},
"create_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
},
"update_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
}
}
}
}
响应为:
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "user_v1"
}
3.3.2.文档操作
ES
支持多种类型的客户端:
- HTTP API:
ES
提供了RESTful HTTP API
,用户可以通过直接发送HTTP
请求来执行索引、搜索和管理集群的操作。 - Kibana:
Kibana
是ES
官方提供的可视化工具,用户可以通过Kibana
控制台使用查询语法(如DSL、KQL
)来执行搜索、分析和数据可视化。 - Java REST Client:
ES
官方提供的Java
高级REST
客户端库,用于Java
程序中与Elasticsearch
进行通信,支持索引、查询、集群管理等操作。 - Spring Data Elasticsearch:
Spring
全家桶的一员,用于将Elasticsearch
与Spring
框架集成,通过简化的Repository
方式进行索引、查询和数据管理操作。 - Elasticsearch SQL CLI:命令行工具,允许通过类
SQL
语法直接在命令行中查询Elasticsearch
数据,适用于熟悉SQL
的用户。
这里以 Spring Boot
为例子,使用
<!-- elasticsearch: https://www.elastic.co/docs/get-started/ -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>
再添加配置文件配置:
spring:
elasticsearch:
uris: http://127.0.0.1:9200
username: elastic
password: Qwe54188_
使用 Spring Data Elasticsearch
提供的 Bean
即可操作 Elasticsearch
,我们可以直接通过 @Resource
注解引入,注入后根据我们创建的索引插入文档,对 ES
文档进行一些操作。
package cn.com.edtechhub.workusercentre;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.elasticsearch.index.query.QueryBuilders;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.data.annotation.Id;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;
import org.springframework.data.elasticsearch.core.ElasticsearchRestTemplate;
import org.springframework.data.elasticsearch.core.SearchHit;
import org.springframework.data.elasticsearch.core.SearchHits;
import org.springframework.data.elasticsearch.core.mapping.IndexCoordinates;
import org.springframework.data.elasticsearch.core.query.IndexQuery;
import org.springframework.data.elasticsearch.core.query.IndexQueryBuilder;
import org.springframework.data.elasticsearch.core.query.NativeSearchQueryBuilder;
import org.springframework.data.elasticsearch.core.query.Query;
import javax.annotation.Resource;
import java.util.List;
import java.util.stream.Collectors;
@SpringBootApplication
@Slf4j
public class Test implements CommandLineRunner {
public static void main(String[] args) {
SpringApplication.run(Test.class, args);
}
@Resource
private ElasticsearchRestTemplate elasticsearchRestTemplate;
@Override
public void run(String... args) throws Exception {
User user = new User();
user.setId(1L); // 使用 Long 类型ID
user.setAccount("testUser");
user.setNick("limou3434");
user.setName("缡墨");
user.setProfile("我是一名测试用户");
user.setAddress("广州白云区");
user.setTags(1001);
// 1. 创建文档
addUser(user);
// 2. 查询文档(根据 id)
searchById(user.getId());
// 3. 查询文档(根据 account)
searchByAccount(user.getAccount());
// 4. 更新文档
updateUserProfile(user.getId());
// 5. 删除文档
// deleteUser(user.getId()); // 可以先别删除在 kibana 中查看一下
/*
可以使用下面 json 在 kibana 中查看
GET /user_v1/_doc/1
*/
}
private User addUser(User user) {
IndexQuery indexQuery = new IndexQueryBuilder()
.withId(user.getId().toString()) // 显式转为String
.withObject(user)
.build();
String documentId = elasticsearchRestTemplate.index(indexQuery, IndexCoordinates.of("user_v1"));
log.info("新增文档成功, ID: {}", documentId);
return user;
}
private void searchById(Long id) {
// 关键修改点:使用Long类型查询
User user = elasticsearchRestTemplate.get(id.toString(), User.class, IndexCoordinates.of("user_v1"));
log.info("根据 id 查询结果: {}", user);
}
private void searchByAccount(String account) {
Query query = new NativeSearchQueryBuilder()
.withQuery(QueryBuilders.matchQuery("account", account))
.build();
SearchHits<User> searchHits = elasticsearchRestTemplate.search(query, User.class);
List<User> users = searchHits.stream()
.map(SearchHit::getContent)
.collect(Collectors.toList());
log.info("根据 account 查询到 {} 条结果: {}", users.size(), users);
}
private void updateUserProfile(Long id) {
User user = elasticsearchRestTemplate.get(id.toString(), User.class, IndexCoordinates.of("user_v1"));
if (user != null) {
user.setProfile("更新后的用户简介 [" + System.currentTimeMillis() + "]");
IndexQuery updateQuery = new IndexQueryBuilder()
.withId(user.getId().toString())
.withObject(user)
.build();
String updatedId = elasticsearchRestTemplate.index(updateQuery, IndexCoordinates.of("user_v1"));
log.info("更新文档成功, id: {}", updatedId);
/*
可以使用下面 json 在 kibana 中查看
GET /user_v1/_search
{
"query": {
"match_all": {}
}
}
*/
} else {
log.warn("未找到 id 为 {} 的文档", id);
}
}
private void deleteUser(Long id) {
String deletedId = elasticsearchRestTemplate.delete(id.toString(), IndexCoordinates.of("user_v1"));
log.info("删除文档成功,ID: {}", deletedId);
}
}
@Data
@Document(indexName = "user_v1") // 由于我们最主要的还是根据下面几个字段来查询, 所以其他字段我暂时不考虑
class User {
@Id
private Long id; // 标识
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String account; // 帐号
@Field(type = FieldType.Keyword)
private Integer tags; // 标签
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String nick; // 昵称
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String name; // 名字
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String profile; // 简介
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String address; // 地址
}
重要
补充:建议 好好阅读这篇文档。
可能您会发现这种开发模式有点眼熟,没错 ElasticsearchRestTemplate
就是有点类似基于 JDBC
的 JdbcTemplate
,不过我们倚仗 MyBatisPlus
,成功不用编写过多的代码,最终达到从 entity->service->controller
的模式,那么 ES
有没有办法书写 Dao
层呢?有的,官方支持 Spring
类型的项目这么做!类似 MyBatisPlus
的开发过程,您需要定义 ES
的索引实体类(最好内部含有和实体类相互转换的方法),并且继承 ElasticsearchRepository
得到操作接口 UserEsMapper
,然后在 service
中您的接口,serviceImpl
中实现这些接口。
这种开发模式和我们以往的开发一模一样,在 UserEsMapper
中已经实现好了大部分可直接使用的 CURD
方法,我们可以先来编写一个接口用来查询用户,不过我们主要是为了分词查询,数据我们自己导入,所以实际上 UserEsMapper
在我们的服务中几乎对内提供全量导入和增量导入。而日常查询接口的编写中,我们依旧使用 ElasticsearchRestTemplate
来进行接口开发。
ok
基本的内容都有了,开始编写代码。
curl -u elastic:Qwe54188_ -X DELETE "http://localhost:9200/user_v1"
curl -u elastic:Qwe54188_ -X PUT "http://127.0.0.1:9200/user_v1" \
-H 'Content-Type: application/json' \
-d '{
"aliases": {
"user": {}
},
"mappings": {
"properties": {
"account": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"wx_union": {
"type": "keyword",
"index": true
},
"mp_open": {
"type": "keyword",
"index": true
},
"email": {
"type": "keyword",
"index": true
},
"phone": {
"type": "keyword",
"index": true
},
"ident": {
"type": "keyword",
"index": true
},
"passwd": {
"type": "keyword",
"index": false
},
"avatar": {
"type": "keyword",
"index": false
},
"tags": {
"type": "keyword",
"index": true
},
"nick": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"name": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"profile": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"birthday": {
"type": "date",
"format": "yyyy-MM-dd",
"index": true
},
"country": {
"type": "keyword",
"index": true
},
"address": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_smart",
"index": true
},
"role": {
"type": "integer",
"index": true
},
"level": {
"type": "integer",
"index": true
},
"gender": {
"type": "integer",
"index": true
},
"deleted": {
"type": "keyword",
"index": true
},
"create_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
"index": true
},
"update_time": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss"
"index": true
}
}
}
}'
curl -u elastic:Qwe54188_ -X GET "http://127.0.0.1:9200/user_v1/_mapping?pretty"
package cn.com.edtechhub.workusercentre.mapper;
import cn.com.edtechhub.workusercentre.model.entity.UserEs;
import org.springframework.data.elasticsearch.repository.ElasticsearchRepository;
/**
* 用户映射(ES)
*
* @author <a href="https://github.com/limou3434">limou3434</a>
*/
public interface UserEsMapper extends ElasticsearchRepository<UserEs, Long> {
}
我们需要先来写全量更新的程序和增量更新的程序,不然 MySQL
没有导入数据到 ES
中的话,ES
无法进行分词。
package cn.com.edtechhub.workusercentre.job.once;
import cn.com.edtechhub.workusercentre.mapper.UserEsMapper;
import cn.com.edtechhub.workusercentre.model.entity.User;
import cn.com.edtechhub.workusercentre.model.entity.UserEs;
import cn.hutool.core.collection.CollUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import javax.annotation.Resource;
import java.util.List;
import java.util.stream.Collectors;
/**
* 全量同步用户到 ES
*
* @author <a href="https://github.com/limou3434">limou3434</a>
*/
@Component // 注释这个则关闭全量同步
@Slf4j
public class FullSyncUserToEs {
/**
* 注入 userEsMapper
*/
@Resource
private UserEsMapper userEsMapper;
/**
* 注入 jdbcTemplate
*/
@Resource
private JdbcTemplate jdbcTemplate;
/**
* 执行内容
*/
@PostConstruct // 在 Spring 容器初始化后时执行一次
public void run() {
// 全量获取题目, 数据量不大的情况下使用
String sql = "SELECT * FROM user";
List<User> userList = jdbcTemplate.query(sql, new BeanPropertyRowMapper<>(User.class)); // 使用原生 JDBC 绕过逻辑删除避免无法同部到 ES
log.debug("asdkljuugasd {}", userList);
if (CollUtil.isEmpty(userList)) {
return;
}
// 转为 ES 实体类
List<UserEs> userEsList = userList.stream()
.map(UserEs::EntityToMapping)
.collect(Collectors.toList());
// 分页批量插入到 ES
final int pageSize = 10;
int total = userEsList.size();
log.debug("FullSyncUserToEs start, total {}", total);
for (int i = 0; i < total; i += pageSize) {
// 注意同步的数据下标不能超过总数据量
int end = Math.min(i + pageSize, total);
log.debug("sync from {} to {}", i, end);
userEsMapper.saveAll(userEsList.subList(i, end));
}
log.debug("FullSyncUserToEs end, total {}, is {}", total, userEsList);
}
}
package cn.com.edtechhub.workusercentre.job.cycle;
import cn.com.edtechhub.workusercentre.mapper.UserEsMapper;
import cn.com.edtechhub.workusercentre.model.entity.User;
import cn.com.edtechhub.workusercentre.model.entity.UserEs;
import lombok.extern.slf4j.Slf4j;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.sql.Timestamp;
import java.time.Instant;
import java.time.temporal.ChronoUnit;
import java.util.List;
import java.util.stream.Collectors;
/**
* 增量同步用户到 ES(每分钟一次)
*
* @author <a href="https://github.com/limou3434">limou3434</a>
*/
// todo 取消注释开启任务
@Component // 注释这个则关闭增量同步
@Slf4j
public class IncSyncUserToEs {
/**
* 注入 userEsMapper
*/
@Resource
private UserEsMapper userEsMapper;
/**
* 注入 jdbcTemplate
*/
@Resource
private JdbcTemplate jdbcTemplate;
/**
* 执行内容
*/
@Scheduled(fixedRate = 60 * 1000)
public void run() {
// 当前时间(UTC)
Instant now = Instant.now();
// 2 分钟前(UTC)
Instant fiveMinutesAgo = now.minus(2, ChronoUnit.MINUTES);
// 构建 SQL 语句
String sql = "SELECT * FROM user WHERE update_time >= ?"; //直接用 update_time 比较,无需转换(timestamp 默认是 UTC)
// 查询数据得到 2 分钟内被更新的数据(不过不包含直接被删除的记录)
List<User> userList = jdbcTemplate.query(
sql,
new BeanPropertyRowMapper<>(User.class),
Timestamp.from(fiveMinutesAgo)
);
// 转为 ES 实体类
List<UserEs> userEsList = userList.stream()
.map(UserEs::EntityToMapping)
.collect(Collectors.toList());
// 分页批量插入到 ES
final int pageSize = 10;
int total = userEsList.size();
if (total == 0) {
log.debug("IncSyncUserToEs no data...");
}
else {
log.debug("IncSyncUserToEs start, total {}", total);
for (int i = 0; i < total; i += pageSize) {
// 注意同步的数据下标不能超过总数据量
int end = Math.min(i + pageSize, total);
log.debug("sync from {} to {}", i, end);
userEsMapper.saveAll(userEsList.subList(i, end));
}
log.debug("IncSyncUserToEs end, total {}, is {}", total, userEsList);
}
}
}
您可以使用下面的 json
进行查看是否全量更新。
GET /user/_search
{
"from": 0,
"size": 30,
"query": {
"match_all": {}
}
}
然后我们需要编写索引实体,对照我们之前使用 MyBatisPlus
生成的实体类来编写。
package cn.com.edtechhub.workusercentre.model.entity;
import com.baomidou.mybatisplus.annotation.*;
import java.io.Serializable;
import java.util.Date;
import lombok.Data;
/**
* 用户实体
*
* @author <a href="https://github.com/limou3434">limou3434</a>
*/
@TableName(value ="user")
@Data
public class User implements Serializable {
/**
* 本用户唯一标识(业务层需要考虑使用雪花算法用户标识的唯一性)
*/
@TableId(type = IdType.ASSIGN_ID) // 手动添加雪花算法
private Long id;
/**
* 账户号(业务层需要决定某一种或多种登录方式, 因此这里不限死为非空)
*/
private String account;
/**
* 微信号
*/
private String wxUnion;
/**
* 公众号
*/
private String mpOpen;
/**
* 邮箱号
*/
private String email;
/**
* 电话号
*/
private String phone;
/**
* 身份证
*/
private String ident;
/**
* 用户密码(业务层强制刚刚注册的用户重新设置密码, 交给用户时默认密码为 123456, 并且加盐密码)
*/
private String passwd;
/**
* 用户头像(业务层需要考虑默认头像使用 cos 对象存储)
*/
private String avatar;
/**
* 用户标签(业务层需要 json 数组格式存储用户标签数组)
*/
private String tags;
/**
* 用户昵称
*/
private String nick;
/**
* 用户名字
*/
private String name;
/**
* 用户简介
*/
private String profile;
/**
* 用户生日
*/
private String birthday;
/**
* 用户国家
*/
private String country;
/**
* 用户地址
*/
private String address;
/**
* 用户角色(业务层需知 -1 为封号, 0 为用户, 1 为管理, ...)
*/
private Integer role;
/**
* 用户等级(业务层需知 0 为 level0, 1 为 level1, 2 为 level2, 3 为 level3, ...)
*/
private Integer level;
/**
* 用户性别(业务层需知 0 为未知, 1 为男性, 2 为女性)
*/
private Integer gender;
/**
* 是否删除(0 为未删除, 1 为已删除)
*/
@TableLogic
private Integer deleted; // 手动修改为逻辑删除
/**
* 创建时间(受时区影响)
*/
private Date createTime;
/**
* 更新时间(受时区影响)
*/
private Date updateTime;
@TableField(exist = false)
private static final long serialVersionUID = 1L;
@Override
public boolean equals(Object that) {
if (this == that) {
return true;
}
if (that == null) {
return false;
}
if (getClass() != that.getClass()) {
return false;
}
User other = (User) that;
return (this.getId() == null ? other.getId() == null : this.getId().equals(other.getId()))
&& (this.getAccount() == null ? other.getAccount() == null : this.getAccount().equals(other.getAccount()))
&& (this.getWxUnion() == null ? other.getWxUnion() == null : this.getWxUnion().equals(other.getWxUnion()))
&& (this.getMpOpen() == null ? other.getMpOpen() == null : this.getMpOpen().equals(other.getMpOpen()))
&& (this.getEmail() == null ? other.getEmail() == null : this.getEmail().equals(other.getEmail()))
&& (this.getPhone() == null ? other.getPhone() == null : this.getPhone().equals(other.getPhone()))
&& (this.getIdent() == null ? other.getIdent() == null : this.getIdent().equals(other.getIdent()))
&& (this.getPasswd() == null ? other.getPasswd() == null : this.getPasswd().equals(other.getPasswd()))
&& (this.getAvatar() == null ? other.getAvatar() == null : this.getAvatar().equals(other.getAvatar()))
&& (this.getTags() == null ? other.getTags() == null : this.getTags().equals(other.getTags()))
&& (this.getNick() == null ? other.getNick() == null : this.getNick().equals(other.getNick()))
&& (this.getName() == null ? other.getName() == null : this.getName().equals(other.getName()))
&& (this.getProfile() == null ? other.getProfile() == null : this.getProfile().equals(other.getProfile()))
&& (this.getBirthday() == null ? other.getBirthday() == null : this.getBirthday().equals(other.getBirthday()))
&& (this.getCountry() == null ? other.getCountry() == null : this.getCountry().equals(other.getCountry()))
&& (this.getAddress() == null ? other.getAddress() == null : this.getAddress().equals(other.getAddress()))
&& (this.getRole() == null ? other.getRole() == null : this.getRole().equals(other.getRole()))
&& (this.getLevel() == null ? other.getLevel() == null : this.getLevel().equals(other.getLevel()))
&& (this.getGender() == null ? other.getGender() == null : this.getGender().equals(other.getGender()))
&& (this.getDeleted() == null ? other.getDeleted() == null : this.getDeleted().equals(other.getDeleted()))
&& (this.getCreateTime() == null ? other.getCreateTime() == null : this.getCreateTime().equals(other.getCreateTime()))
&& (this.getUpdateTime() == null ? other.getUpdateTime() == null : this.getUpdateTime().equals(other.getUpdateTime()));
}
@Override
public int hashCode() {
final int prime = 31;
int result = 1;
result = prime * result + ((getId() == null) ? 0 : getId().hashCode());
result = prime * result + ((getAccount() == null) ? 0 : getAccount().hashCode());
result = prime * result + ((getWxUnion() == null) ? 0 : getWxUnion().hashCode());
result = prime * result + ((getMpOpen() == null) ? 0 : getMpOpen().hashCode());
result = prime * result + ((getEmail() == null) ? 0 : getEmail().hashCode());
result = prime * result + ((getPhone() == null) ? 0 : getPhone().hashCode());
result = prime * result + ((getIdent() == null) ? 0 : getIdent().hashCode());
result = prime * result + ((getPasswd() == null) ? 0 : getPasswd().hashCode());
result = prime * result + ((getAvatar() == null) ? 0 : getAvatar().hashCode());
result = prime * result + ((getTags() == null) ? 0 : getTags().hashCode());
result = prime * result + ((getNick() == null) ? 0 : getNick().hashCode());
result = prime * result + ((getName() == null) ? 0 : getName().hashCode());
result = prime * result + ((getProfile() == null) ? 0 : getProfile().hashCode());
result = prime * result + ((getBirthday() == null) ? 0 : getBirthday().hashCode());
result = prime * result + ((getCountry() == null) ? 0 : getCountry().hashCode());
result = prime * result + ((getAddress() == null) ? 0 : getAddress().hashCode());
result = prime * result + ((getRole() == null) ? 0 : getRole().hashCode());
result = prime * result + ((getLevel() == null) ? 0 : getLevel().hashCode());
result = prime * result + ((getGender() == null) ? 0 : getGender().hashCode());
result = prime * result + ((getDeleted() == null) ? 0 : getDeleted().hashCode());
result = prime * result + ((getCreateTime() == null) ? 0 : getCreateTime().hashCode());
result = prime * result + ((getUpdateTime() == null) ? 0 : getUpdateTime().hashCode());
return result;
}
@Override
public String toString() {
StringBuilder sb = new StringBuilder();
sb.append(getClass().getSimpleName());
sb.append(" [");
sb.append("Hash = ").append(hashCode());
sb.append(", id=").append(id);
sb.append(", account=").append(account);
sb.append(", wxUnion=").append(wxUnion);
sb.append(", mpOpen=").append(mpOpen);
sb.append(", email=").append(email);
sb.append(", phone=").append(phone);
sb.append(", ident=").append(ident);
sb.append(", passwd=").append(passwd);
sb.append(", avatar=").append(avatar);
sb.append(", tags=").append(tags);
sb.append(", nick=").append(nick);
sb.append(", name=").append(name);
sb.append(", profile=").append(profile);
sb.append(", birthday=").append(birthday);
sb.append(", country=").append(country);
sb.append(", address=").append(address);
sb.append(", role=").append(role);
sb.append(", level=").append(level);
sb.append(", gender=").append(gender);
sb.append(", deleted=").append(deleted);
sb.append(", createTime=").append(createTime);
sb.append(", updateTime=").append(updateTime);
sb.append(", serialVersionUID=").append(serialVersionUID);
sb.append("]");
return sb.toString();
}
}
package cn.com.edtechhub.workusercentre.model.entity;
import cn.hutool.core.collection.CollUtil;
import cn.hutool.json.JSONUtil;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.data.annotation.Id;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;
import java.io.Serializable;
import java.util.Date;
import java.util.List;
/**
* 用户索引
*/
@Document(indexName = "user")
@Data
@Slf4j
public class UserEs implements Serializable {
private static final String DATE_TIME_PATTERN = "yyyy-MM-dd HH:mm:ss";
/**
* 本用户唯一标识(业务层需要考虑使用雪花算法用户标识的唯一性)
*/
@Id
private Long id;
/**
* 账户号(业务层需要决定某一种或多种登录方式, 因此这里不限死为非空)
*/
@Field(name = "account") // 显式指定 ES 字段名, 避免字段风格不一致
private String account;
/**
* 微信号
*/
@Field(name = "wx_union") // 显式指定 ES 字段名, 避免字段风格不一致
private String wxUnion;
/**
* 公众号
*/
@Field(name = "mp_open") // 显式指定 ES 字段名, 避免字段风格不一致
private String mpOpen;
/**
* 邮箱号
*/
@Field(name = "email") // 显式指定 ES 字段名, 避免字段风格不一致
private String email;
/**
* 电话号
*/
@Field(name = "phone") // 显式指定 ES 字段名, 避免字段风格不一致
private String phone;
/**
* 身份证
*/
@Field(name = "ident") // 显式指定 ES 字段名, 避免字段风格不一致
private String ident;
/**
* 用户密码(业务层强制刚刚注册的用户重新设置密码, 交给用户时默认密码为 123456, 并且加盐密码)
*/
@Field(name = "passwd") // 显式指定 ES 字段名, 避免字段风格不一致
private String passwd;
/**
* 用户头像(业务层需要考虑默认头像使用 cos 对象存储)
*/
@Field(name = "avatar") // 显式指定 ES 字段名, 避免字段风格不一致
private String avatar;
/**
* 用户标签(业务层需要 json 数组格式存储用户标签数组)
*/
@Field(name = "tags") // 显式指定 ES 字段名, 避免字段风格不一致
private List<String> tags; // 修改以支持数组查询
/**
* 用户昵称
*/
@Field(name = "nick") // 显式指定 ES 字段名, 避免字段风格不一致
private String nick;
/**
* 用户名字
*/
@Field(name = "name") // 显式指定 ES 字段名, 避免字段风格不一致
private String name;
/**
* 用户简介
*/
@Field(name = "profile") // 显式指定 ES 字段名, 避免字段风格不一致
private String profile;
/**
* 用户生日
*/
@Field(name = "birthday") // 显式指定 ES 字段名, 避免字段风格不一致
private String birthday;
/**
* 用户国家
*/
@Field(name = "country") // 显式指定 ES 字段名, 避免字段风格不一致
private String country;
/**
* 用户地址
*/
@Field(name = "address") // 显式指定 ES 字段名, 避免字段风格不一致
private String address;
/**
* 用户角色(业务层需知 -1 为封号, 0 为用户, 1 为管理, ...)
*/
@Field(name = "role") // 显式指定 ES 字段名, 避免字段风格不一致
private Integer role;
/**
* 用户等级(业务层需知 0 为 level0, 1 为 level1, 2 为 level2, 3 为 level3, ...)
*/
@Field(name = "level") // 显式指定 ES 字段名, 避免字段风格不一致
private Integer level;
/**
* 用户性别(业务层需知 0 为未知, 1 为男性, 2 为女性)
*/
@Field(name = "gender") // 显式指定 ES 字段名, 避免字段风格不一致
private Integer gender;
/**
* 是否删除(0 为未删除, 1 为已删除)
*/
@Field(name = "deleted") // 显式指定 ES 字段名, 避免字段风格不一致
private Integer deleted; // 手动修改为逻辑删除
/**
* 创建时间(受时区影响)
*/
@Field(name = "create_time", type = FieldType.Date, format = {}, pattern = DATE_TIME_PATTERN)
// 显式指定 ES 字段名, 避免字段风格不一致
private Date createTime;
/**
* 更新时间(受时区影响)
*/
@Field(name = "update_time", type = FieldType.Date, format = {}, pattern = DATE_TIME_PATTERN)
// 显式指定 ES 字段名, 避免字段风格不一致
private Date updateTime;
@TableField(exist = false)
private static final long serialVersionUID = 1L;
/**
* 对象转包装类
*/
public static UserEs EntityToMapping(User user) {
// 拷贝字段
if (user == null) {
return null;
}
UserEs userEs = new UserEs();
BeanUtils.copyProperties(user, userEs);
// 处理数组字段, 避免纯粹的 JSON 字符无法兼容 ES
String tags = user.getTags();
if (StringUtils.isNotBlank(tags)) {
userEs.setTags(JSONUtil.toList(tags, String.class)); // 快速把 json 数组字符转为数组
}
return userEs;
}
/**
* 包装类转对象
*/
public static User MappingToEntity(UserEs userEs) {
if (userEs == null) {
return null;
}
User user = new User();
BeanUtils.copyProperties(userEs, user);
// 处理数组字段, 避免纯粹的 JSON 字符无法兼容 ES
List<String> tagList = userEs.getTags();
if (CollUtil.isNotEmpty(tagList)) {
user.setTags(JSONUtil.toJsonStr(tagList)); // 快速把数组转为 json 数组字符
}
return user;
}
}
然后定义接口服务。
public interface UserService extends IService<User> {
/**
* 用户查询服务(ES)
*/
List<User> userSearchEs(UserSearchRequest userSearchRequest);
}
@Service
@Slf4j
public class UserServiceImpl extends ServiceImpl<UserMapper, User> implements UserService {
private NativeSearchQuery getQueryWrapperEs(UserSearchRequest userSearchRequest) {
// 获取参数
Long id = userSearchRequest.getId();
String account = userSearchRequest.getAccount();
String tags = userSearchRequest.getTags();
String nick = userSearchRequest.getNick();
String name = userSearchRequest.getName();
String profile = userSearchRequest.getProfile();
String address = userSearchRequest.getAddress();
int pageCurrent = userSearchRequest.getPageCurrent() - 1; // 这里需要减 1 以适配 ES 的分页
int pageSize = userSearchRequest.getPageSize();
String sortField = userSearchRequest.getSortField();
String sortOrder = userSearchRequest.getSortOrder();
List<String> tagsList = JSONUtil.toList(tags, String.class); // 一行代码转换
// 构造查询条件
BoolQueryBuilder boolQueryBuilder = QueryBuilders.boolQuery();
// 过滤
boolQueryBuilder.filter(QueryBuilders.termQuery("deleted", 0));
if (id != null) {
boolQueryBuilder.filter(QueryBuilders.termQuery("id", id));
}
// 查询
if (StringUtils.isNotBlank(account)) {
boolQueryBuilder.filter(QueryBuilders.matchQuery("account", account));
}
if (CollUtil.isNotEmpty(tagsList)) {
for (String tag : tagsList) {
boolQueryBuilder.filter(QueryBuilders.termQuery("tags", tag));
}
}
if (StringUtils.isNotBlank(nick)) {
boolQueryBuilder.filter(QueryBuilders.matchQuery("nick", nick));
}
if (StringUtils.isNotBlank(name)) {
boolQueryBuilder.filter(QueryBuilders.matchQuery("name", name));
}
if (StringUtils.isNotBlank(profile)) {
boolQueryBuilder.filter(QueryBuilders.matchQuery("profile", profile));
}
if (StringUtils.isNotBlank(address)) {
boolQueryBuilder.filter(QueryBuilders.matchQuery("address", address));
}
// 分页
PageRequest pageRequest = PageRequest.of(pageCurrent, pageSize);
// 构造查询
return new NativeSearchQueryBuilder()
.withQuery(boolQueryBuilder)
.withPageable(pageRequest)
.build();
}
}
最后就是控制层。
@RestController // 返回值默认为 json 类型
@RequestMapping("/user")
@Slf4j
public class UserController {
/**
* 查询用户网络接口
*/
@SaCheckLogin
@SaCheckRole("admin")
@PostMapping("/search/es")
@SentinelResource(value = "userSearchEs")
public BaseResponse<List<UserVO>> userSearchEs(@RequestBody UserSearchRequest userSearchRequest) {
List<User> userList = userService.userSearchEs(userSearchRequest);
List<UserVO> userVoList = userList.stream()
.map(UserVO::removeSensitiveData)
.collect(Collectors.toList());
return TheResult.success(CodeBindMessage.SUCCESS, userVoList);
}
}
待补充...
